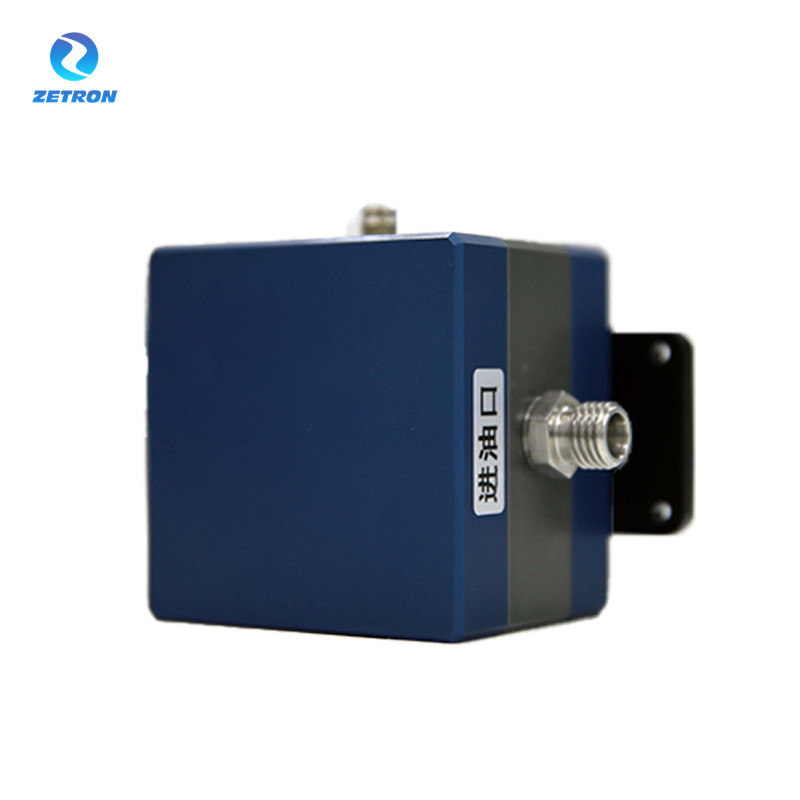

Zetron LPC-M3 Online Particle Counter 70 W

LPC-M3 online particle counter adopts the light resistance (shading) counting principle specified by the International Hydraulic Standards Committee, and is a device specially used for on-site online measurement of oil contamination level detection. It has the advantages of small size, light weight, fast detection speed, high accuracy, good repeatability, etc., and can work under high temperature and high pressure and other harsh conditions. It is suitable for all light-transmitting solvents such as engine oil, gear oil, transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil, water-based (water-based hydraulic oil, water glycol, etc.), alcohols, ketones, etc., and can be widely used in aerospace, petrochemical, transportation ports, steel metallurgy, automobile manufacturing and other fields.

LPC-M3 can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

​

​​​ ​ Light source semiconductor laser Measuring range 1 μm ~1000 μm Measurement standards GJB420B, SAE4059F-CPC , IS04406, GB/T14039, GJB420A, NAS1638 , SAE4059F, GOST17216 Flow rate range 5mL/min ~ 500mL/min (optimal 30mL/min) Sample viscosity ≤ 650cSt Sensitivity 1 μm or 4 μm (c) Counting volume 1~999mL Counting accuracy ±0.5 pollution level Coincidence error limit 40,000 particles/ml Online detection pressure 0.1~10Mpa (optional pressure reducing device, the maximum pressure can reach 40MPa) Data output RS485 interface Power supply DC 9-36V ; ≤ 5W Ambient temperature -20~60 ºC Weight < 500g Dimensions 77.5*70*55mm ​ ​ ​​

​
